Products >> Aluminum Roller Shutter >> aluminum roller shutter

  • Electric Aluminum Perforated Roll Up Door
  • Electric Aluminum Perforated Roll Up Door
  • Electric Aluminum Perforated Roll Up Door
  • Electric Aluminum Perforated Roll Up Door
Electric Aluminum Perforated Roll Up Door Electric Aluminum Perforated Roll Up Door Electric Aluminum Perforated Roll Up Door Electric Aluminum Perforated Roll Up Door

Electric Aluminum Perforated Roll Up Door

  • Product No.:202318171810
  • Size:Customized
  • Color:White.grey,black or other RAL color
  • Material :Insullation or non insullation aluminum profile
  • Glass:Tempered glass
  • Hardware:Steel or Aluminum
  • Online Inquiry


Electric Aluminum Perforated Roll Up Door

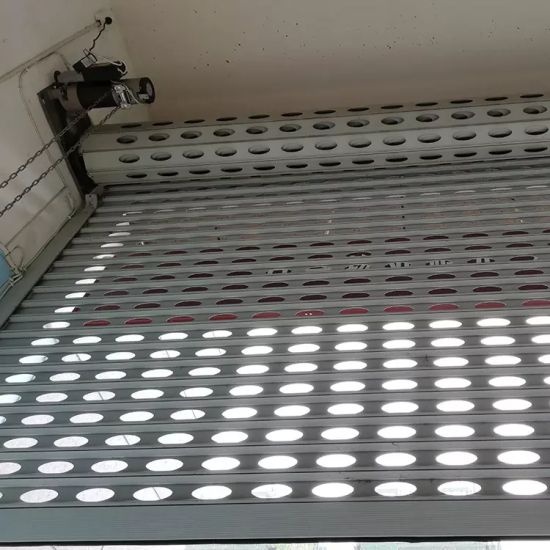

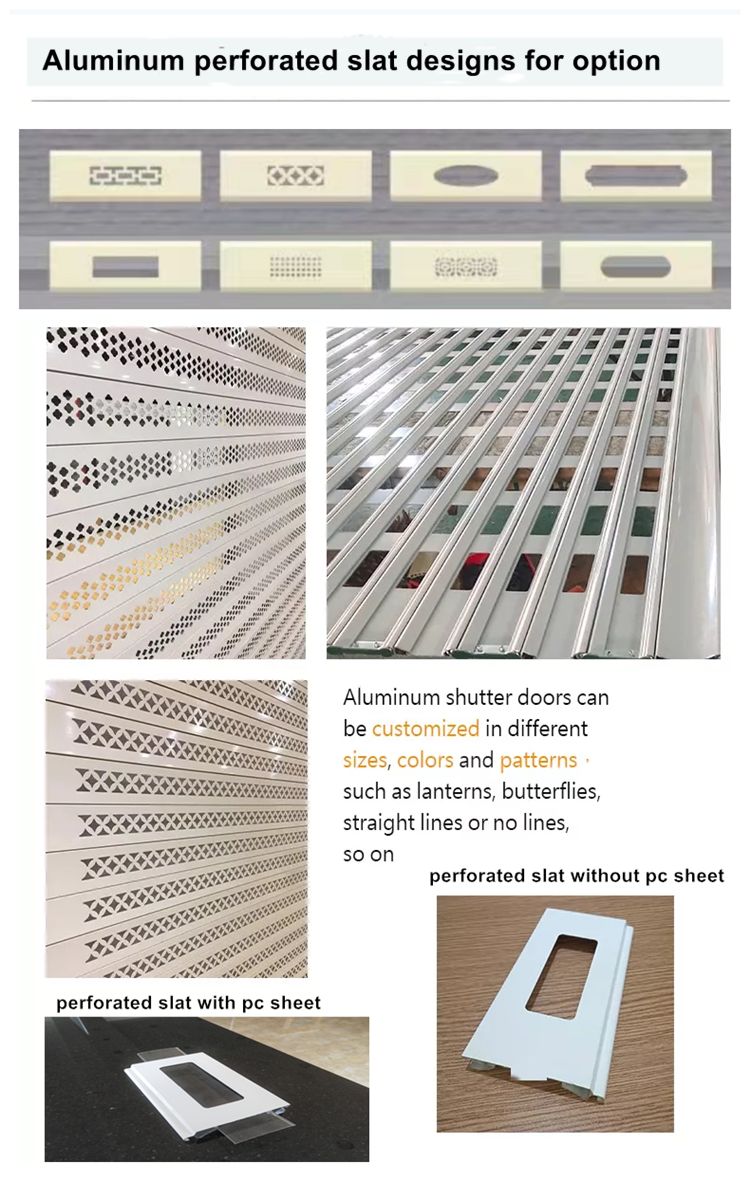

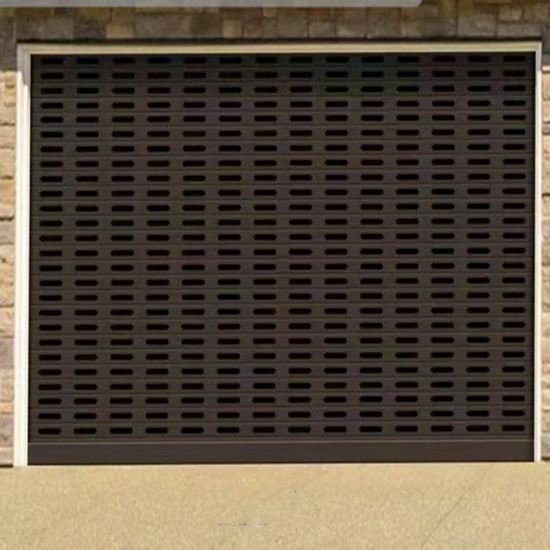

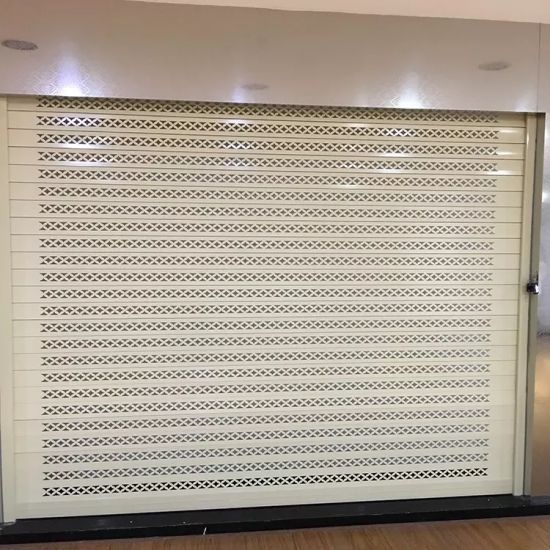

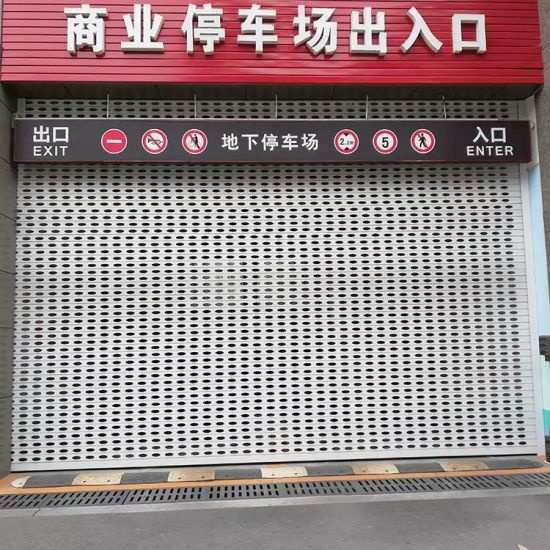

Aluminum Perforated Roll Up Door could be use as security door in super mall & domestic balcony, this type aluminum roll up doors have good ventilation to make fresh air inside. Perforated Roll Up Door is combined with punched single layer slat, you can choose the punched shape you need, the slat can be filled with pc sheet or without pc sheet based on clients requirements.



Product Specifications


Name


Perforated Aluminum roller shutter





Types of Slat by Width



80mm,85mm (Perforated extruded roller shutter,used for doors)



Slat thickness


1.0mm for perforated roller shutter






Material of Slat



Aluminum alloy perforated single layer





Color of Slat





white,black,beige, grey,wood grain and customized





Surface treatment





Powder coated





Slat Weight



7.5-12KG/m2





Track thickness





2.0-3.5mm strong track



Impact resistance



10N.M no crack





Watertightness



1 class(water pressure 30 Pa)









Motor





10-300 Nm, Tubular Motor





500-2000 KGS, Chain Side Motor





Operation







Manual: with lock and Spring



Automatic: with motor and hand crack or mobile controlling



Function





Water-proof,wind-proof, anti-sunlight, anti-rust, anti-lacerated.


  aluminum perforated slat roller shutter
