Products >> Aluminum Roller Shutter >> Crystal Roller Shutter

  • Automatic crystal polycarbonate transparent roller shutter door
  • Automatic crystal polycarbonate transparent roller shutter door
  • Automatic crystal polycarbonate transparent roller shutter door
  • Automatic crystal polycarbonate transparent roller shutter door
Automatic crystal polycarbonate transparent roller shutter door Automatic crystal polycarbonate transparent roller shutter door Automatic crystal polycarbonate transparent roller shutter door Automatic crystal polycarbonate transparent roller shutter door

Automatic crystal polycarbonate transparent roller shutter door

  • Product No.:202313181954
  • Size:Customized
  • Color:grey,black or other RAL color
  • Material :Insullation or non insullation aluminum profile
  • Glass:Tempered glass
  • Hardware:Steel or Aluminum
  • Online Inquiry



Automatic crystal polycarbonate transparent roller shutter door

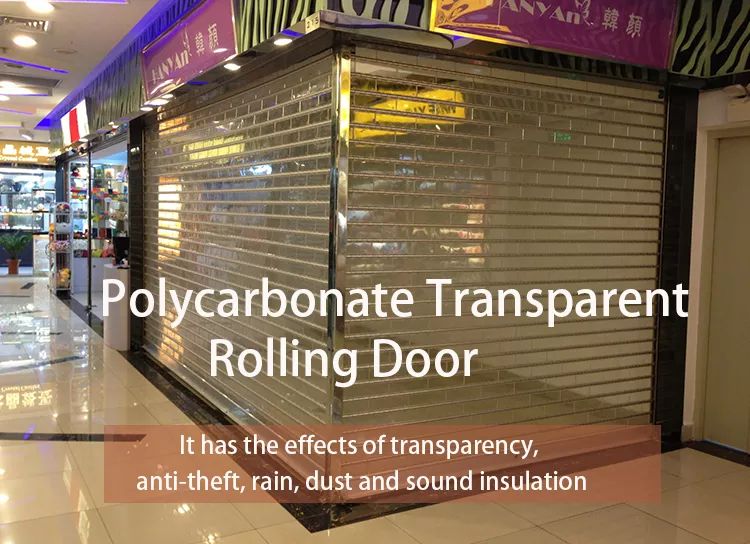

The crystal shutter is made of imported top-quality non-breaking bulletproof and anti-theft film. It has the effects of transparency, anti-theft, rain, dust and sound insulation. It is widely used in banks, shopping malls, shops, telecommunications, subway stations and other places to pursue a safe and stylish style.



Product Specifications

Name

Crystal Roller Shutter

Door panel

Door slat

Material:PC
Thickness: 2.5mm/2.0mm/1.8mm/1.5mm/1.2mm

S.S. Steel tube

16mm/12mm/9mm

scroll

External Diameter:5''/8''
Thickness: 1.2mm/1.5mm

Bottom bar

Aluminum with rubber seal

End Cap

Nylon

Gear box

Aluminum
Thickness: 1.0mm/2.0mm

Guide channel

S.S. guide channel

Thickness: 1.2mm
Width: 7cm
Opening width:2.5cm

Aluminium guide channel

Thickness: 2mm
Width: 9cm
Opening width:2.5cm
Channel Depth:5cm

Drive system

External Side motor


600kgs/800kgs/1200kgs

Tubular motor

100N,100kgs,140N/130kg,140N/150kg


  crystal roller shutter
